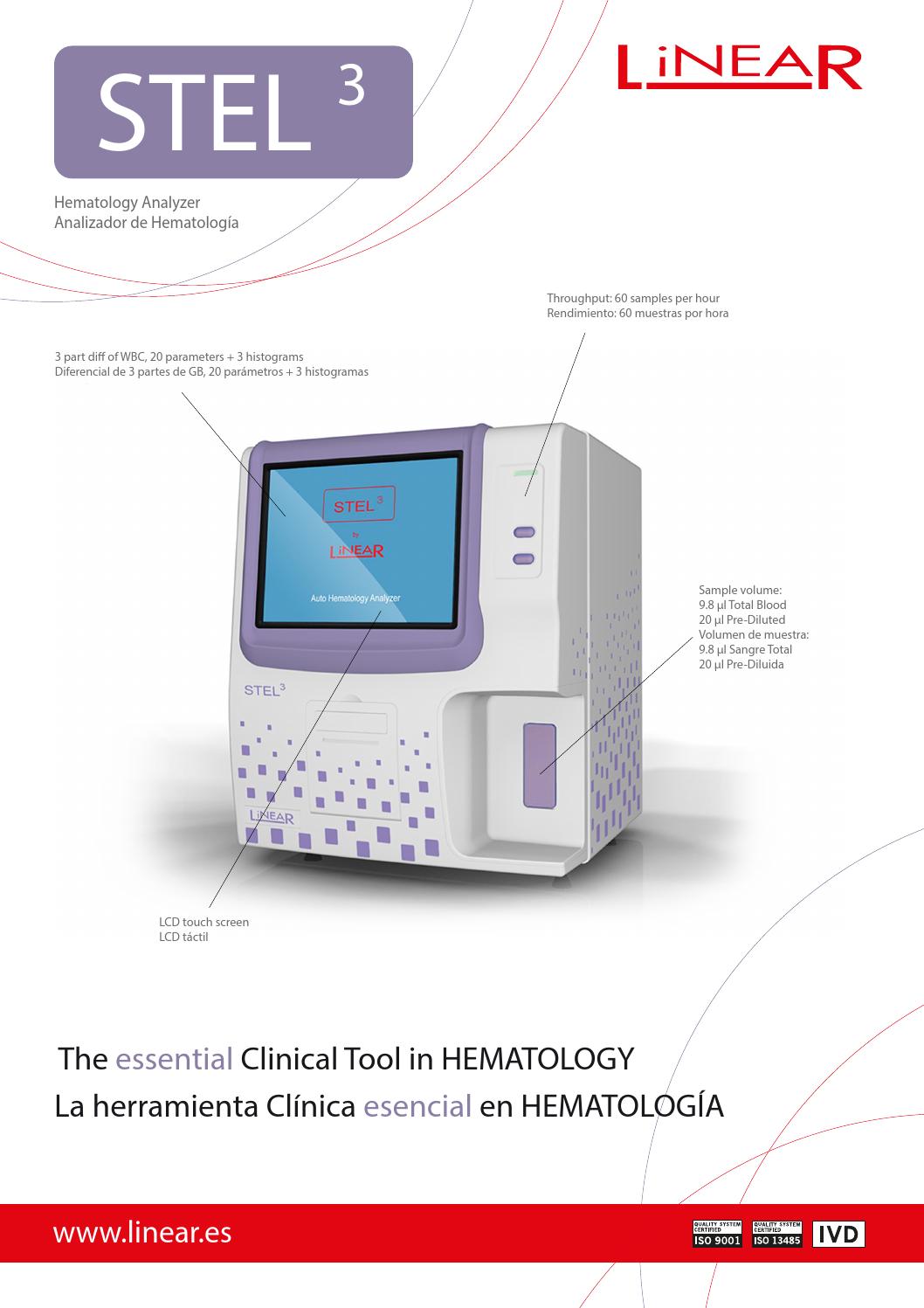

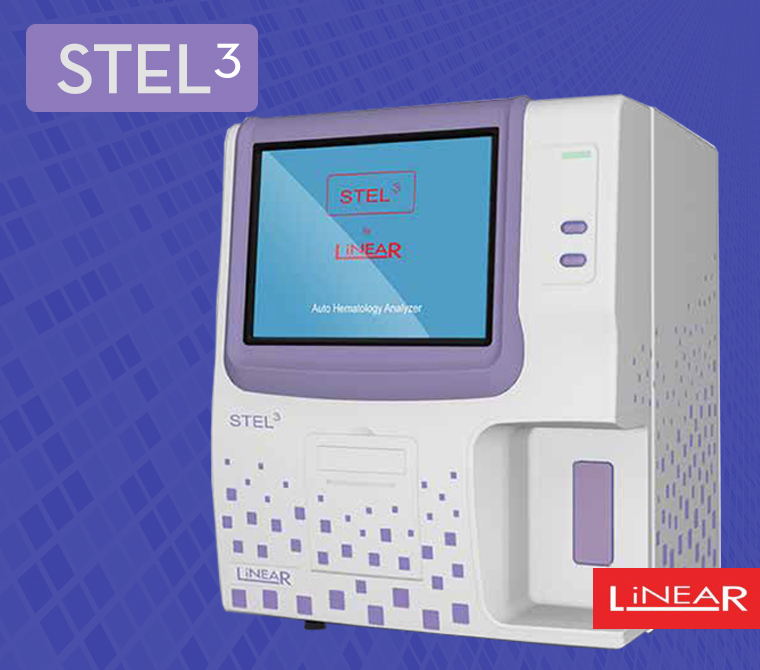

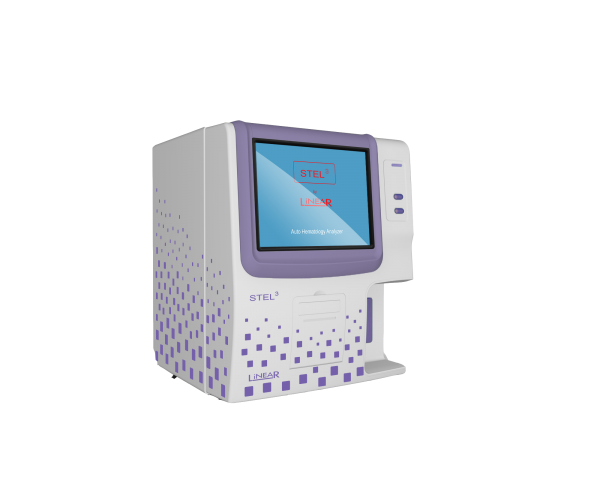

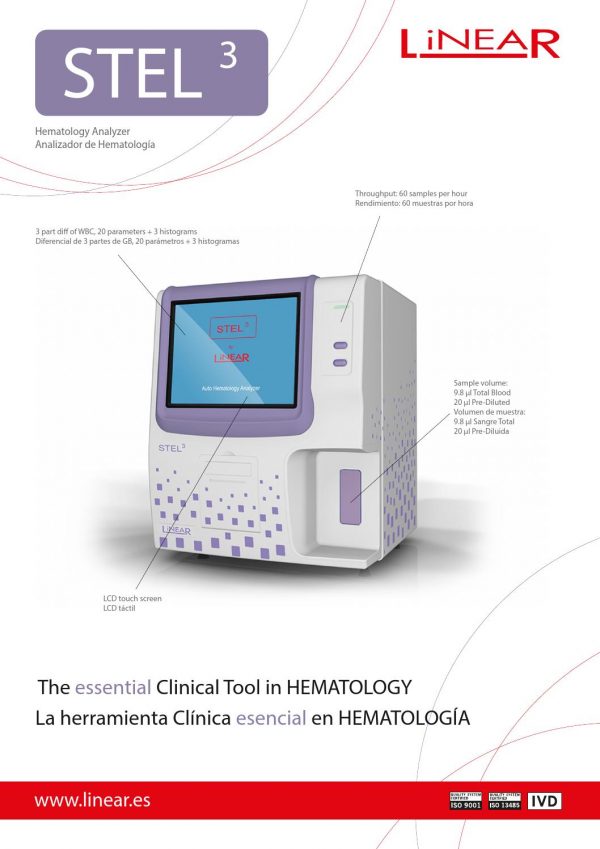

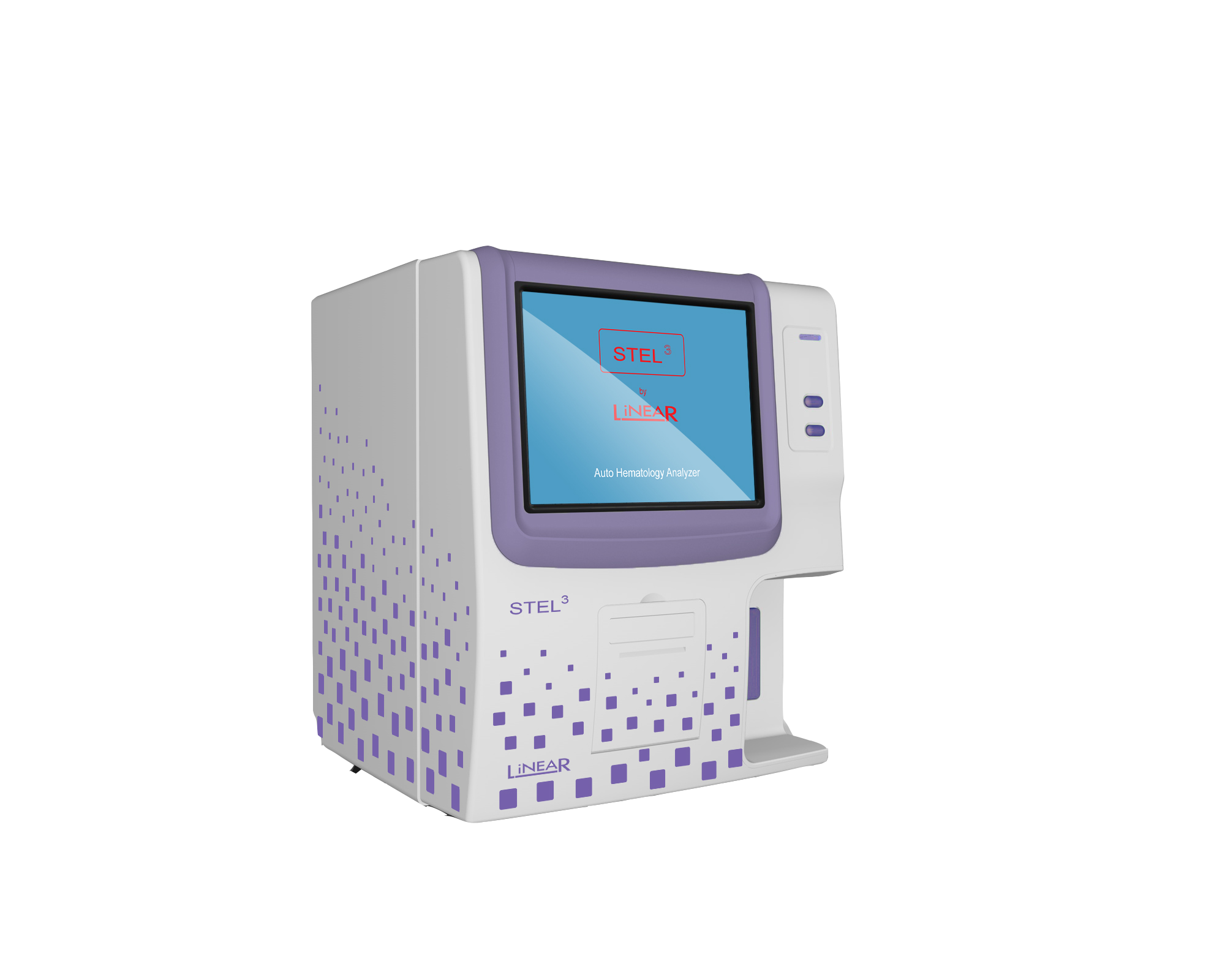

STEL 3 hematology analyzer

The STEL 3 hematology analyzer offers a throughput of 60 samples per hour and a 20 parameter blood count profile, including 3-part WBC differential results with three histograms. It requires a whole blood sample of 9.8 μl and a pre-diluted sample of 20 μl, and can store up to 50,000 sample results, including histograms.

Category: Tag:

STEL 3 – A Product of Linear Chemicals

  • 3part Diff
  • 20 Parameters
  • 3 Histogram for WBC, RBC and PLT
  • Throughput: 60tests/hr.
  • Counting modes: Whole Blood, Prediluted and Peripheral
  • Sample Vol.: 9.8 μl Total Blood 20 μl Pre-Diluted
TEST SPECIFICATIONS RESULTS
Blank counting Result of a measurement using Hematology Analyzer, test value should be:
White blood cell count(WBC)≤0.3*109/L,
Red blood cell count(RBC) ≤0.05*1012/L,
Platelet count (PLT) ≤10*109/L,
Hemoglobinometry (HGB) ≤2g/L.		 WBC:0 0 0
RBC:0 0 0
PLT:0 0 0
HGB:0 0 0
Wavelength of
absorption peak		 Wavelength of absorption peak of haemoglobin ramification after erythrolysis by Lyse should not exceed ±10nm of nominal value 537.6
Absorbance
Value		 At wavelength of 750nm, absorbance value of fresh blood
after erythrolysis should not exceed 0.012.		 0.010
WBC Histogram Analyze normal person’s fresh blood using hematology
analyzer. The WBC histogram should meet the following
requirements:
1. Include two group peaks of small and large cells.
2. Should be in accordance with the shape of peak and
range of peak position of WBC partition histogram of
related hematology analyzer.
3. There should not be interference peak within 35fl





pass
