Model |
CA-01C |
|---|---|
|
Analysis Parameters |
PT, APTT, TT, FIB, F2, F5, F7, F8, F9, F10, F11, F12, Heparin, APC-R, Protein S, Protein C |
|
Principle |
Scattered light with percentage analysis |
|
Sample Volume Required |
PT: 25ul, APTT: 25ul, TT: 25ul, FIB: 25ul |
|
Testing Channel |
1 Channels |
|
Light Source |
Durable LED detector |
|
Sample Position |
5 positions |
|
Reagent Position |
2 positions (1 magnetic mixer included) |
|
Testing Time |
Normally 20~60 secs, Maximum time up to 600 secs |
|
Minimum Reagent Consumption |
30µL for APTT, 50µL for FIB, PT, APTT |
|
Position Warming-up |
37°C(±0.5°C) |
|
Memory |
6,000 test results |
|
Display |
LCD display |
|
Interface |
RS-232 |
|
Input |
Easy operation keypad |
|
Output |
Internal printer |
|
Power supply |
AC 110-220V±10%, 50~60Hz |
|
Net Weight |
5KG |
|
Dimension (mm) |
L270xW270xH120 |

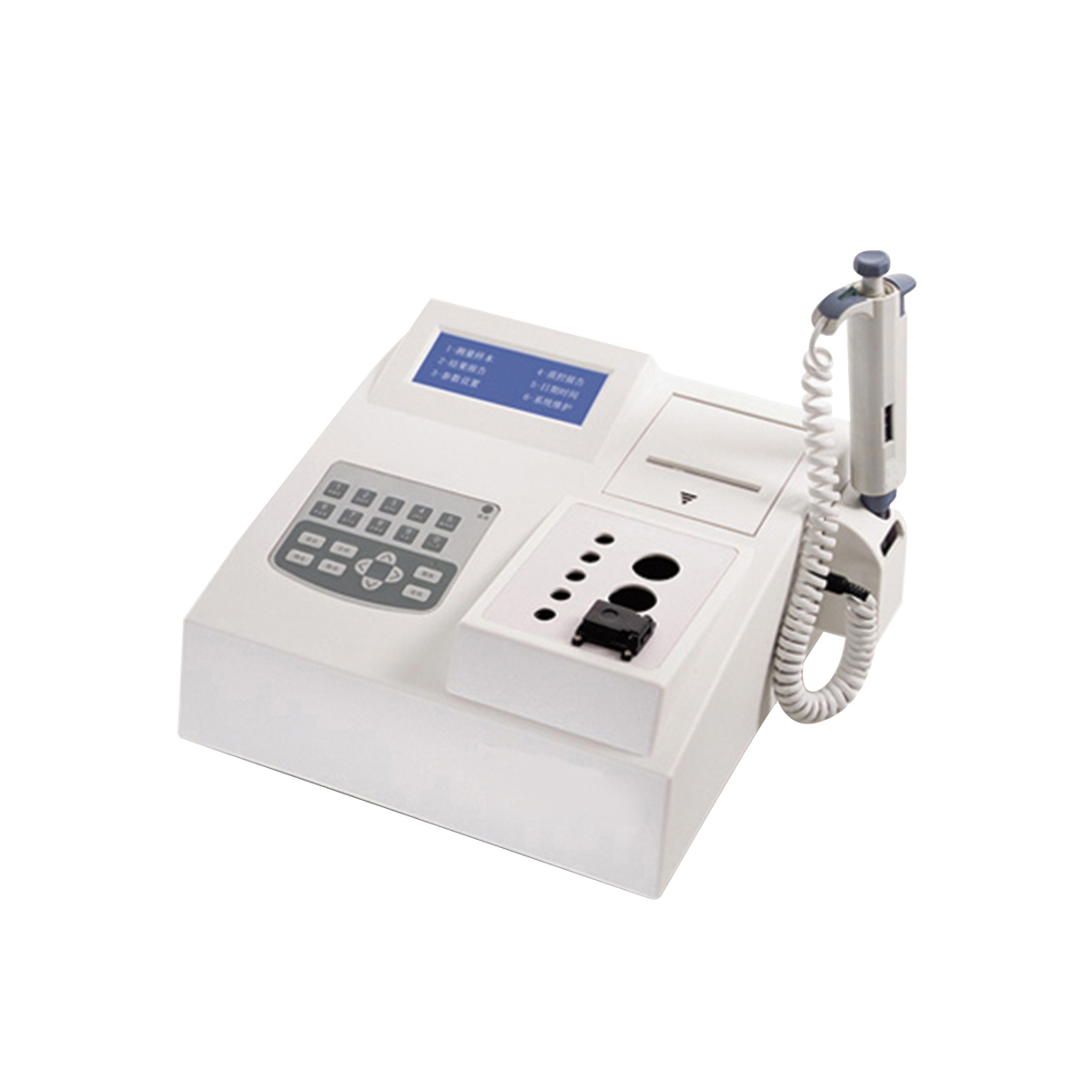

Coagulometer With Internal Printer, 1 Channel
● 1 channel (LED detector)
● Analysis parameters:PT,APTT,TT,FIB,F2,F5,F7, F8,F9,F10,F11,F12,Heparin,APC-R,Protein S, Protein C.
● Sample Volume required: PT:25ul,APTT:25ul,TT:25ul,FIB:25ul.
● Sample position:5 positions.
● Reagent Position:2 positions (1 magnetic mixer included).
● Up to 6,000 test results storage.
● Interface:RS-232
● Open reagent system with low consumption, close reagent on request.
● Easy keypad operation with LCD display
● Internal printer
● QC and calibration program incorporated.
● Auto self-check when power on.
● Dimention (mm): L270xW270xH120.
Power supply AC 110-220V±10%, 50~60Hz
